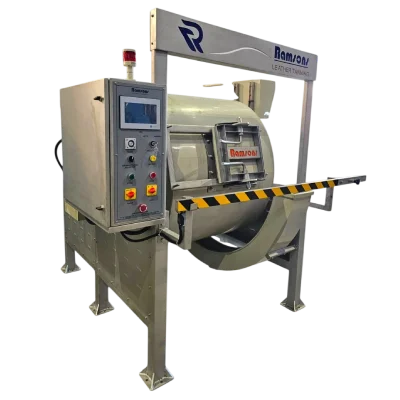

PP LEATHER TANNING DRUM – Sampling

The drum is made out of Polypropylene.

Capacity: 12 Kg Wet Blue loading

Motor: 2 hp.

  • This Machine provides Electrical control panels and an Inverter Drive System to Vary the Drum Speed. The above machine is mounted on an SS 316 G square tubular structure.
  • This PP Drum is driven through a bevel helical Geared motor - Vertical type (Make: SEW - EURO DRIVES from Germany).

Model RLPP-2
TWIN DRUM		 RLPP-5 RLPP-12 RLPP-18 RLPP-25 RLPP-40 RLPP-70 RLPP-100 RLPP-200
Drum Diameter (mm) 600 800 1000 1000 1200 1200 1500 1800 2100
Drum Width (mm) 300 400 400 500 600 900 1200 1200 1500
Wet Blue Load (kgs) 2 5 12 18 25 40 70 100 200
Drum Speed (rpm) 9/12/14 9/12/14 9/12/14 9/12/14 9/12/14 9/12/14 9/12/14 9/12/14 9/12/14
Motor Power (hp) 1 2 2 2 3 3 7.5 10 12

in view of continuous improvements, images and technical specifications may change
